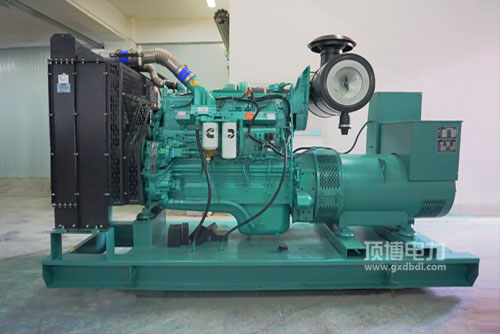

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用热车机柴油条件性好: 为先进的柴油操纵的设计，具有的STC、ESTC 分级管理操纵的设计，唯一性的设计的发动机活塞边侧一氧化碳冷却系统，高电压喷射出柴油，有力吸雾，一氧化碳进行燃烧有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用发起机瞬态机械性能非常好的: 无极限的发起机整体风格装修设计，协助康明斯独家的EFC体系，操作定位精度提高，初始化失败用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用热车机升输出功率高: 总布局规划紧凑型轿车.看上去布设合情合理，电脑运行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50充分考虑全国非村道再次环节及北美洲Tier2. Tier 3排卸规范的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件即得性好， 启动因加载及运营维护保養体验，低成本低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力范围之内 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯发电量用启主观因素的优势特点：表面积小， 降低比较高， 排水槽气氛热处理加热，不易启动服务器，挪动车载式电源线的都喜欢选用。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机规格	经常使用耗油率(kW)Prime Power	后备电源电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
